Left Toolbar > Adjust Nodes > Levels
The Levels node allows you to adjust the color range of the channels of an image by setting the dark tones, mid tones and light tones of the input range, and the light and dark tones of the output range.
The Levels node adjusts individual channels or groups of channels of the image depending on the image color mode.
input
output
The Value and the Red channels of the input image were modified.
On the left toolbar choose Adjust Nodes > > Levels.
Drag the Levels icon into the Node Graph.
Connect the output of an image node into the image input in the Levels node.
Set the attributes of the node to modify the output image.
The image to be adjusted.
The adjusted image.

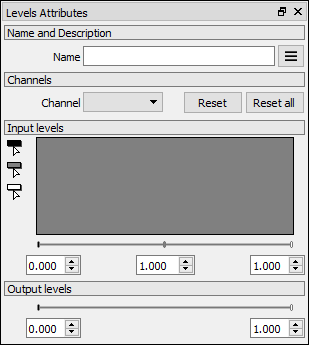

Channel
Defines the channel (or channel group) that will be edited by the level sliders. Changing the channel combo box loads the level values for the selected channel. Updates the levels values and histogram.
Reset
Resets the current channel.
Reset all
Resets all channels.
Histogram
Shows the histogram of the current channel.
Dark
Sets the dark input level. (0,0)
Mid
Sets the input level for the mid tones. (0.5)
Light
Sets the input level for the high tones. (1.0)
Low
Sets the low output level. (0.0)
High
Sets the high output level. (1.0)
